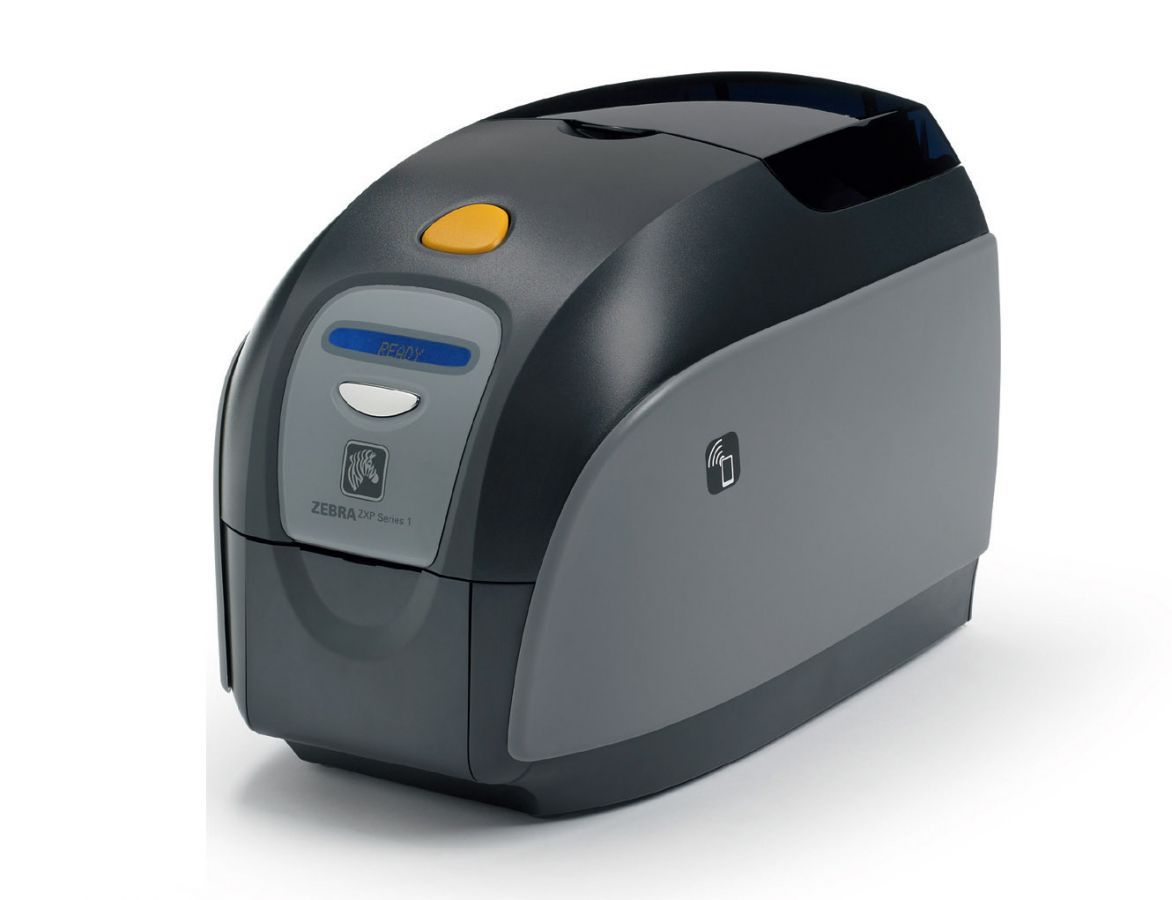

Zebra ZXP Series 1 Single-Sided Card Printer (DISCONTINUED)

SKU: ZEB-Z11-00000000US00


Add to cart

Ideal for low-volume, single-sided card printing applications in color or monochrome, the ZXP Series 1 offers a complete card printing solution with a minimal upfront investment.

Spec Sheet

Need more help? Call1.866.458.6999 or LIVE CHAT
Request a Quote


Need a replacement Printhead? To find the right one for your printer, click here


Standard Features
Eco-Friendly Load-N-Go? drop-in ribbon ZXP Series 1 cartridges
ZRaster? host-based image processing
Auto calibration of ribbon

More Standard Features
USB connectivity
Microsoft Certified Windows drivers
Energy Star Certified
Print Touch NFC tag for online Printer documentation access
100 card covered feeder (30 mil)
45 card capacity output hopper (30 mil)
16-character LCD operator control display
300 dpi (11.8 dots/mm) print resolution
Two-year warranty on printer
Two-year (unlimited passes) original printhead

Printer Specifications
Dye-sublimation thermal transfer direct to card
Full color or monochrome printing
Single-sided printing
500 cph monochrome single-sided
120 cph single-sided YMCKO
Edge-to-edge printing on standard CR-80 media

Supplies Specifications
NOTE: The ZXP Series 1 printer is designed to work only with Zebra True Colours ix Series, ZXP Series 1 ribbons.
Zebra ix Series intelligent technology automatically detects and authenticates ribbon.
Integrated cleaning roller included on each ribbon.
Media Starter Kit – 1 YMCKO ribbon, 100 30-mil PVC cards
Cleaning Kit: 4 print engine cleaning cards and 4 feeder cleaning cards, 1000 images/card

Operating Characteristics
Operating temperature: 60? F (15? C) to 86? F (30? C)
Storage temperatures: 23? F (-5? C) to 158? F (70? C)
Operating humidity: 20% to 65% non-condensing
Storage humidity: 20% to 70% non-condensing

Media Storage:

Temperature: 41F to 77F (5C to 30C)
Humidity: 35% to 65% non-condensing
Do not store in direct sunlight

Auto-switching single-phase AC power
Operating range: 90-132VAC and 190-264VAC RMS
Frequency range : 47-63 Hz.
Power requirement is 100W maximum continuous and 607W peak (for 450 microsec) output power.
FCC Class A

Physical Characteristics
Width: 7.9″ (200 mm)
Height: 9.3″ (236 mm)
Depth: 13.0″ (330 mm)
Weight: 11.6 lbs (5.3 kg)

Optional Features
*CardSense? single-card feed mode
ZebraCare? extended product warranty programs

Communication Interfaces
USB V2.0 (cable included) – standard
*Built-in 10/100 Ethernet – optional

Card Compatibility
NOTE: For optimum print quality and printer performance, use of Zebra genuine supplies is recommended.

Card Thickness: 10-40 mil
Card Size: CR-80, ISO 7810 format, Type ID-1, 2.12″ (54 mm) x 3.38″ (86 mm)
Card Material: PVC and PVC composite
Smart Card Contact – ISO 7816-1,2,3,4
Spot Color or monochrome print only on < 20 mil card thickness

Additional information

Weight 9.07185 kg
